Create Block

Creating and assigning a BLOCK in the CR import sheet

1. Go to tab classes and create the block you want to assign to a class (fill in the mandatory fields)

2. Go to tab properties and create the reference property

   a. Necessary to attach the block to the superior class

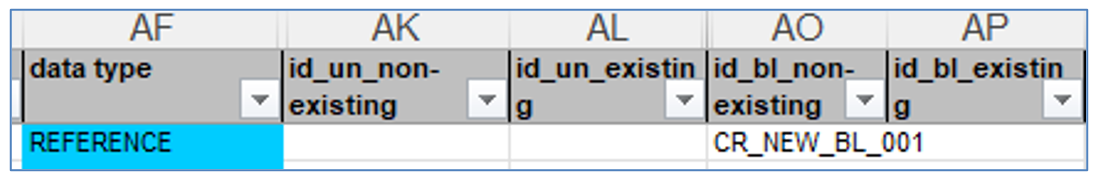

   b. In the column AF select data type "reference" and in column AO or AP select the block that is to

   be attached to the reference Property

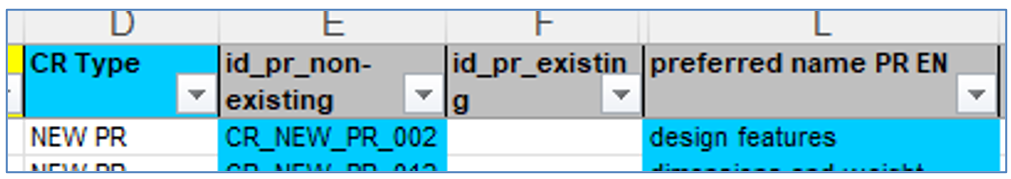

   c. In our example the block "CR_NEW_BL_001" (Design features) is attached to reference Property

   "CR_NEW_PR_002"(design features)

3. Assign the reference Property to the superior class

   a. The reference Property "design features" and its attached block is now assigned to the class

   "CR_NEW_CC_001" (Injecting molding machine)
