ECLASS 16.0

You purchase a license for ECLASS Release 16.0 in all available languages in the export formats BASIC (csv and XML) and ADVANCED (XML). Most language versions are fully translated, some are partially translated. In partly translated language versions, missing language content is filled in with the English original. You can receive language versions in 12 languages as default. All other language versions available from ECLASS can be ordered via our contact form.

The ECLASS Release 16.0 is an enhancement and modification of the ECLASS Release 15.0.

Technical innovations in ECLASS 16.0

No changes in the data model or the XML scheme.

New content

ECLASS 16.0 comprises in comparison to Release 15.0

• 995 new classes (CC, AS, BL, AC), thereof 137 new classification classes (CCs)
• 1.253 new properties
• 985 new values
• 126 new value lists

All available downloads at the ECLASS Shop generally contain a complete ECLASS version in csv format or XML format (for initial implementation). For information on the data structure, please refer to the enclosed README-file.

The content has been extensively expanded, particularly in the following segments:

• Segment 23 "Machine element, fastener, fixing, mounting"
  • New commodity classes in 23-30 "Linear motion technology, Rotary systems", e.g.
    • 23-30-17-00 "Linear motion module, Linear motion axis"
    • 23-30-18-00 "Electromechanical cylinder"
    • 23-30-24-00 "Electromechanical rotary actuator"
  • And new commodity classes on third level, e.g.
    • 23-01-04-00 "Hand wheel / Crank handle (machine handle)"
    • 23-01-06-00 "Quick release fastener"
    • 23-01-07-00 "Leveling feet, leveling mount"
• Segment 27 "Electric engineering, automation, process control engineering"
  • New classes and enhancement of these with properties in 27-38-03-00 "Gripper (electric)", e.g.
    • 27-38-03-01 "Parallel gripper (electric)"
    • 27-38-03-02 "Angular gripper (electric)"
    • 27-38-03-03 "Rotary gripper (electric)"
  • New classes due to the ETIM Harmonisation, e.g.
    • 27-21-07-17 "Immersion thermostat"
    • 27-21-07-18 "Fancoil thermostat"
    • 27-21-07-19 "Zone controller"
• Segment 36 "Machine, apparatus"
  • 36-64-14-00 "Machine Vision System"
• Segment 50 "Interior furnishing", e.g.
  • 50-11-09-25 "Rolling pin"
• Segment 51 "Fluid power"
  • New main group 51-58 "Electronics and software (hydraulics)", with new classification classes, e.g.
    • 51-58-01-01 "Valve amplifier with feedback (hydraulics)"
    • 51-58-01-02 "Valve amplifier without feedback (hydraulics)"
• Extension of the "Material Declaration" aspect, which is attached to all classes
  • Includes information on critical ingredients and has been added for all classification classes (except classes describing services)
  • Enhancement with legal or regulatory requirement to disclose the specific components, compounds, or chemical substances that make up a manufactured item—ensuring transparency for safety, environmental compliance, or consumer awareness (to be found in Block 0173-1#01-AKA421#001)
• Around 23.300 definitions of classification classes were generated using ChatGPT. If a definition has been generated by AI, this is indicated in the attribute "source of definition" with "machine generated by GPT-4o mini".

The product

With Release 7.0 an improved structure according to the underlying ISO13584 data model and an ISO-standard XML format (OntoML) was introduced.

Starting with ECLASS Release 7.0, there are two different versions of ECLASS which contain the same classification classes but differ in the product description based on properties and values. Since Release 13.0, the ECLASS standard has included extensions for the Asset Administration Shell (AAS). Regarding the data model, in addition to BASIC and ADVANCED a new application class of the type "Asset" has been introduced.

BASIC (in csv or XML format)
The BASIC version contains only the content that could be represented in a csv format that was the exclusively used export format before 7.0. Therefore, it does not contain property block structures nor dynamic elements as in the ADVANCED version. BASIC does contain all classes of the ADVANCED, but the product description with the help of properties and values is structured a lot easier. BASIC is therefore a subset of ADVANCED and only includes properties that are flagged as "Basic relevant".

ADVANCED (only in XML format)
The ADVANCED version is the leading version in the database and built based on the data model ISO13584. It contains all structural elements of the ECLASS classification system including property blocks, dynamic elements such as reference properties, polymorphism, and cardinality blocks. The description of these extended structural components as well as additional information can be found under ADVANCED Version in our Technical Support.

Note: Each classification class refers to an ADVANCED, a BASIC application class, and an ASSET AC, that contains the product description with the help of properties and values. The ADVANCED version contains the complete content of ECLASS and is therefore an extension of the BASIC version.

In our Technical Support you find an overview (matrix of functionalities) which makes it possible for you to compare the two versions (BASIC and ADVANCED) and their possibilities. A provided reference table (XML-File: Mapping BASIC_ADVANCED_ADVANCED) enables users of the ADVANCED version to exchange technical data with users of the BASIC version. The necessary know-how must be delivered by the user of the ADVANCED version.

ASSET (only in XML format)
In Release 13.0, Asset Application Classes were created for all classes on the fourth level in the segments 17, 18, 19, 21, 23, 27, 28, 32, 33, 36, 49, 50 and 51. In addition, the so-called "submodel templates" for the AAS were created as aspects at the content level and were added to the Asset AC in these classes. In addition to the BASIC and ADVANCED representation, ECLASS e.V. publishes a derivation of the type "Asset". This contains all Asset Application Classes including the submodel template aspects.

ECLASS 16.0 (Asset) is free of charge for all users; no order is required. You can activate the product yourself:

After entering the discount code "asset-158" under "My profile", ECLASS 16.0 (Asset) is immediately available to all registered ECLASS users free of charge in the personal download area.

Translations

For release 15.0, 14 additional languages have been added, meaning that ECLASS now offers a total of 31 languages in version 15.0. This means that ECLASS now has almost all official languages of the European Union in its portfolio and also covers many other international languages. The language content of the new language versions has been translated using the automatic translation tool DeepL. For the first time, complete translations of the content (‘preferred names’) can be provided in 29 of the 31 languages available in ECLASS.

Content

ECLASS 15.0 BASIC (csv)

• classes file (complete)
• properties file (contains properties marked as "Basic relevant")
• keywords and synonyms file
• values file (complete)
• unit file (complete)
• class-property relations file
• value lists (restricted property-value relations file, only BOOLEAN properties)
• proposal lists (suggested class-property-value relations file incl. constraints)
• README file ECLASS standard

ECLASS 16.0 BASIC (XML) or ADVANCED (XML)

• Dictionaries: include 39 XML files, hence for each segment one XML file that contains the complete content of the relevant segment (classes, keywords, properties, synonyms, values, value lists, units and all relations) (complete)
• Templates: Since Release 10.0.1, the "Templates" folder already known from previous Releases does not contain any content. The reason for this is the future handling of templates to deliver and publish only "default" templates with substantial content. This may change for future Releases. Templates contain a Data Requirement Statement for the data exchange, in which it can be defined, e.g. sequences or optional and mandatory fields between the data transmitter and the receiver. You can find more information in our Technical Support under Templates.
• ECLASS units ("UnitsML" in XML format)
• Only ADVANCED: Additionally for the ADVANCED user the mapping file BASIC - ADVANCED is included
• README-file

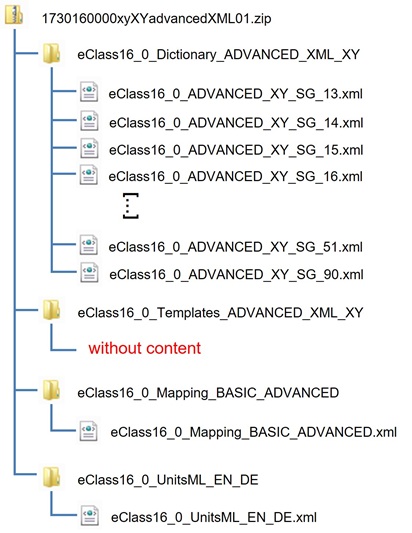

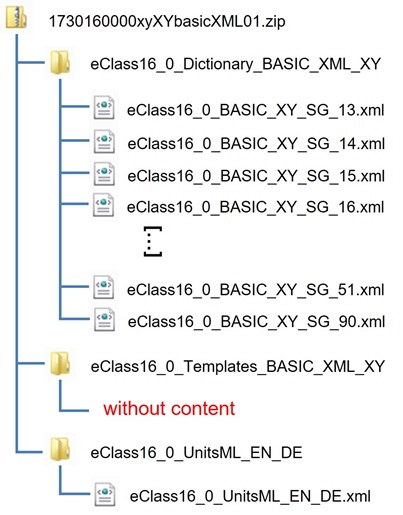

In the following, you will find the structure of the XML files. The placeholder "xy" stands for the different language codes.
