5.1 How to describe terminals using ECLASS ADVANCED model

  • Due to their high number of designs and functions, today's "modular terminal blocks" cannot be clearly mapped in circuit diagrams with the existing standards.
  • These foils serve to describe the function of the terminals as they are physically constructed.
  • On the CAE Tools side, this data can then be mapped to the respective data/structures.

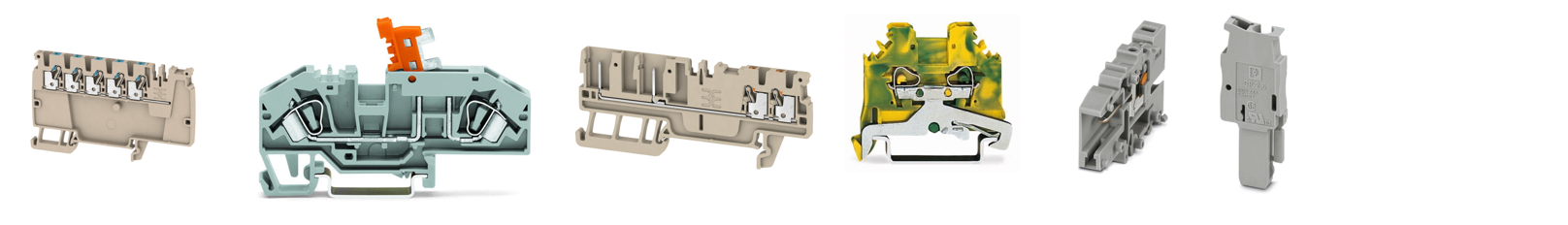

Figure 70: Illustration of the terminals via ECLASS Advanced

Description rule:

  • One function per level
    • If these are not connected via components (diodes, resistors, ...)

Numbering of connections

  • From top to bottom and from left to right in the following order:
    • First the wire / plug-in / busbar connections
    • Then bridges connections
  • For each symbol, the internal and external connections must match the design of the article.
  • The symbol shows all fixed and plug-in connections as a line.
  • Only the positions of the bridge connections are shown with the number.

Figure 71: Illustration of the terminals via ECLASS Advanced

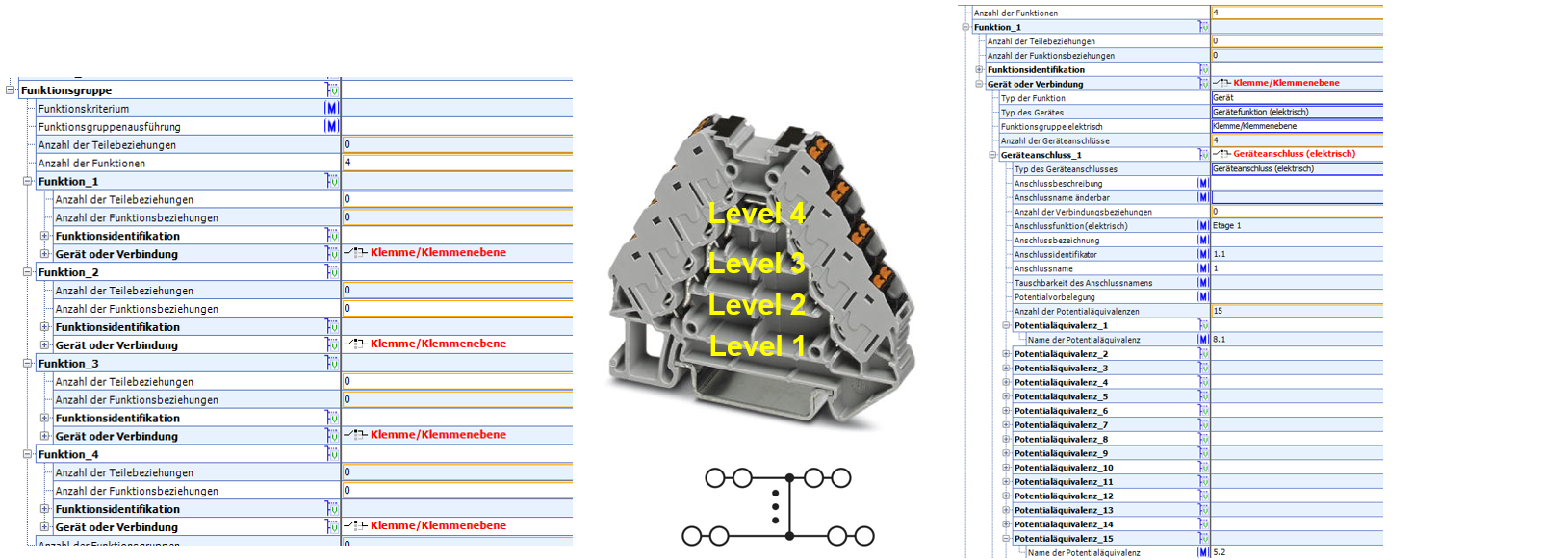

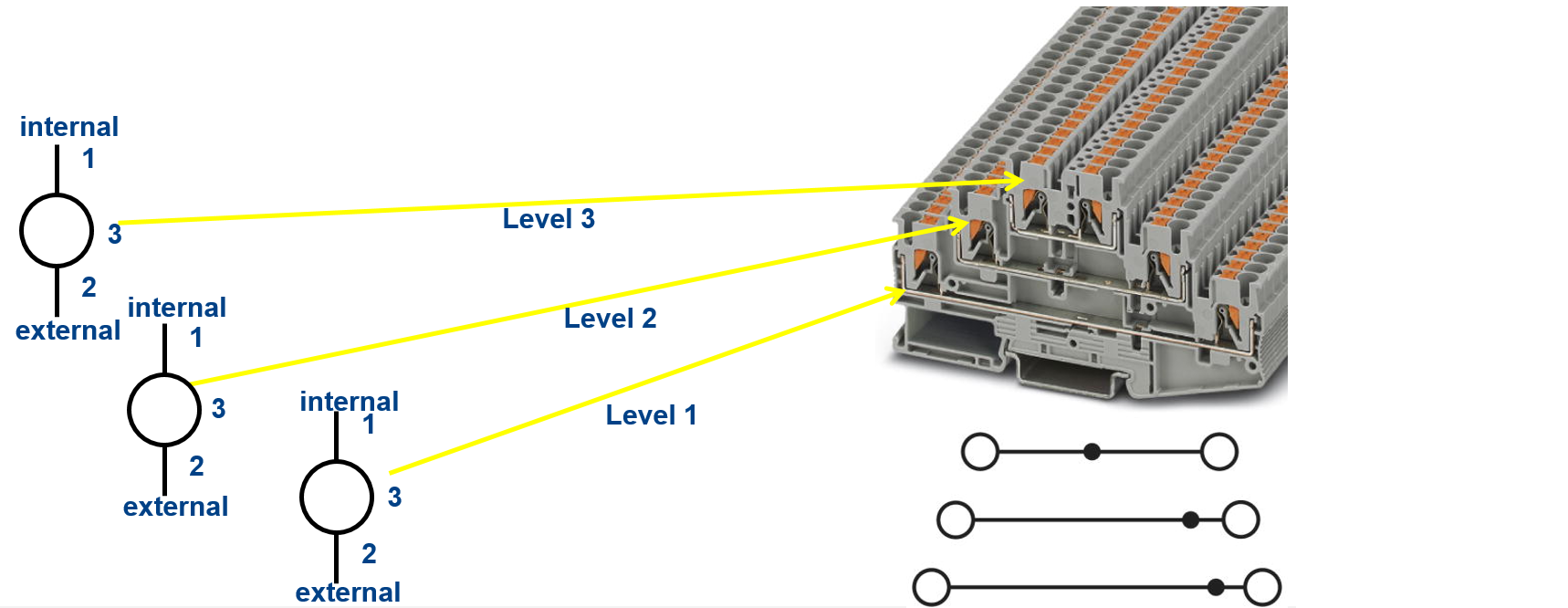

  • Counting direction of the levels for terminals
  • Each level has its own function

Figure 72: Illustration of the terminals via ECLASS Advanced



  • Since terminal connections usually have no designation, numbering of these connections makes sense. First all wire/plug connections and then the bridge connections should be counted.

Figure 73: Function and symbol application examples

  • If terminal connections have a designation, this must be used accordingly.
  • The labeling of the terminal location is entered in the Connection name field.

Figure 74: Function and symbol application examples

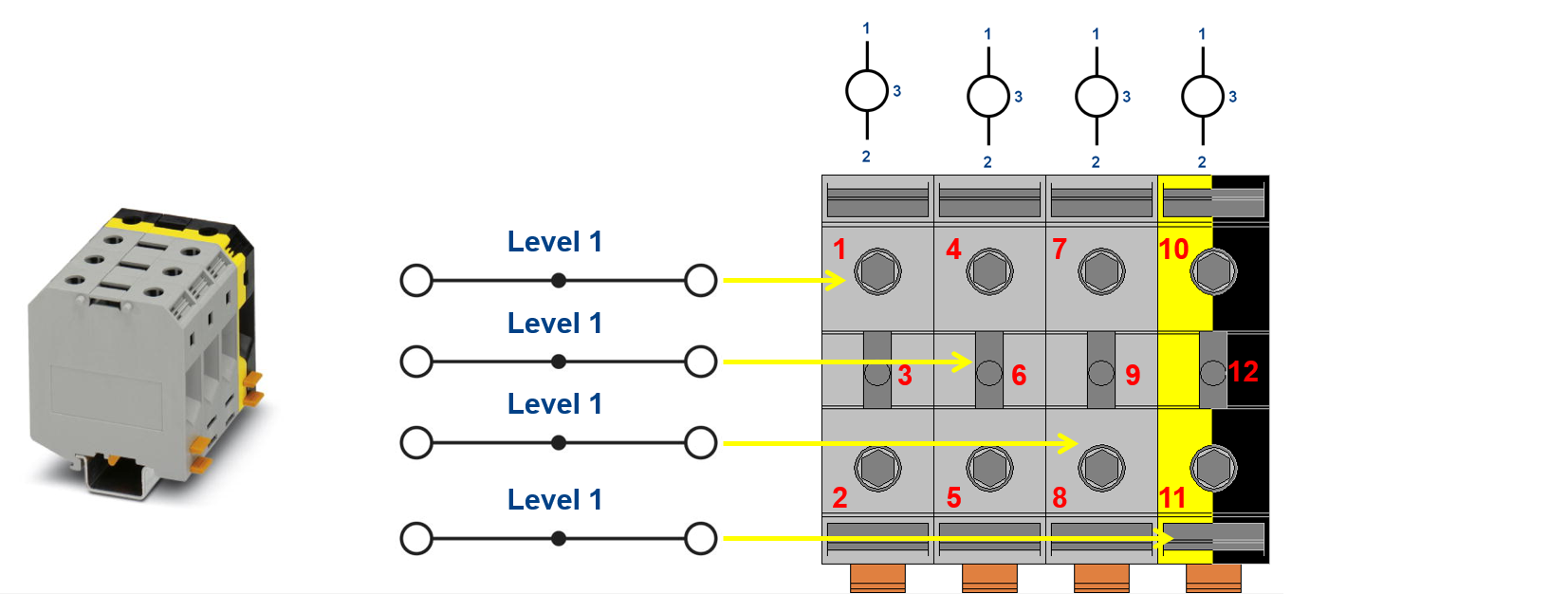

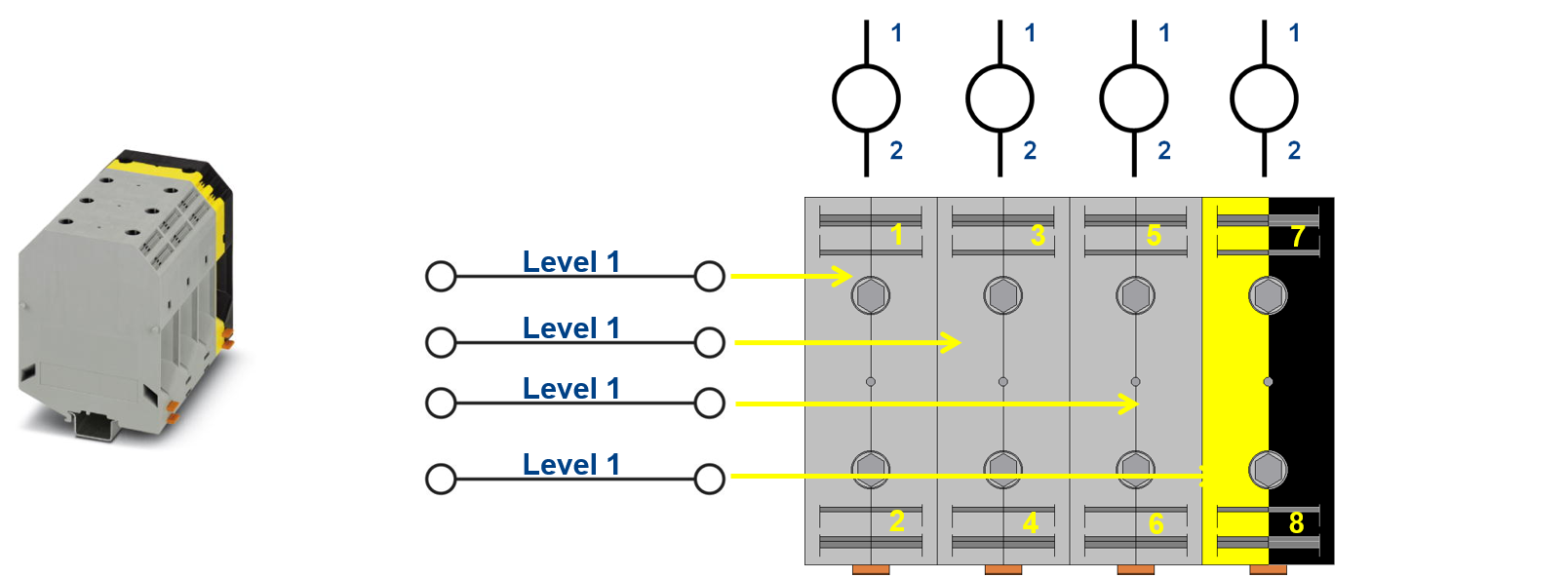

  • For blocked terminals (one order number), each washer has a function
  • The level is then always the same
  • Counting mode of the connections

Figure 75: Function and symbol application examples

  • For blocked terminals (one order number), each washer has a function
  • The level is then always the same
  • Counting mode of the connections

Figure 76: Function and symbol application examples

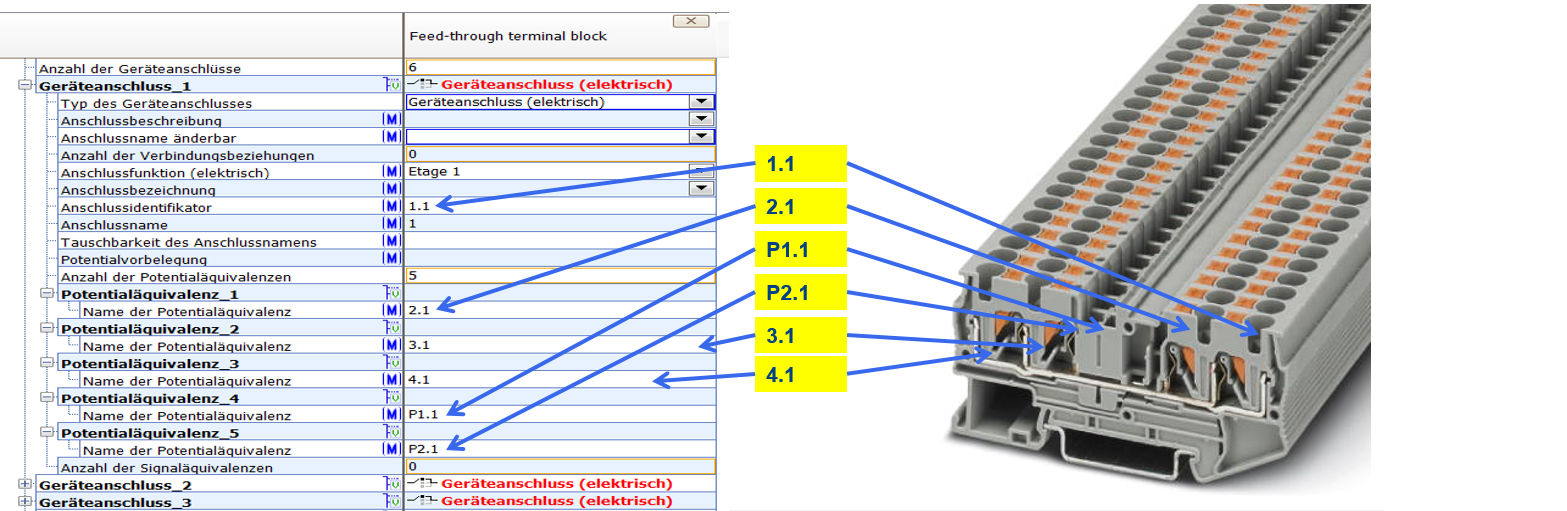

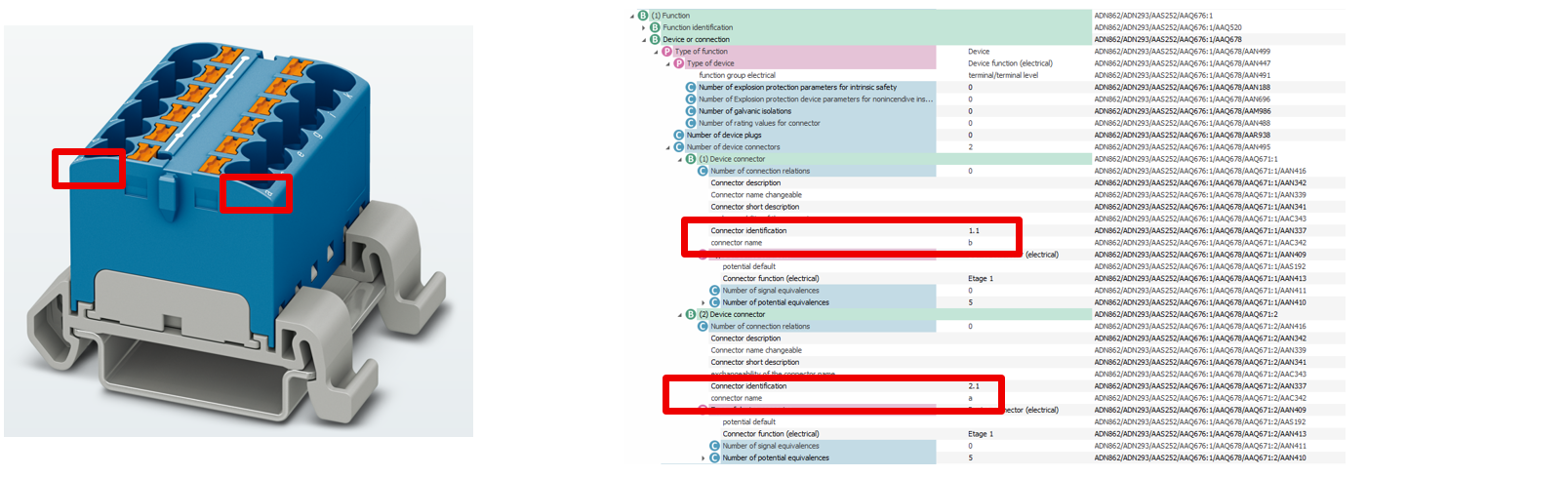

  • The characteristic "Name of potential equivalence" is used to reference further connections with the same potential.
  • The connection identifier must be entered in the field, as this is the only way to ensure unambiguous assignment.

Figure 77: Information on potential equivalence

  • For potential distribution terminals that have several levels, a function is specified for each level and referenced to all corresponding connections via the potential equivalence.

Figure 78: Information on potential equivalence

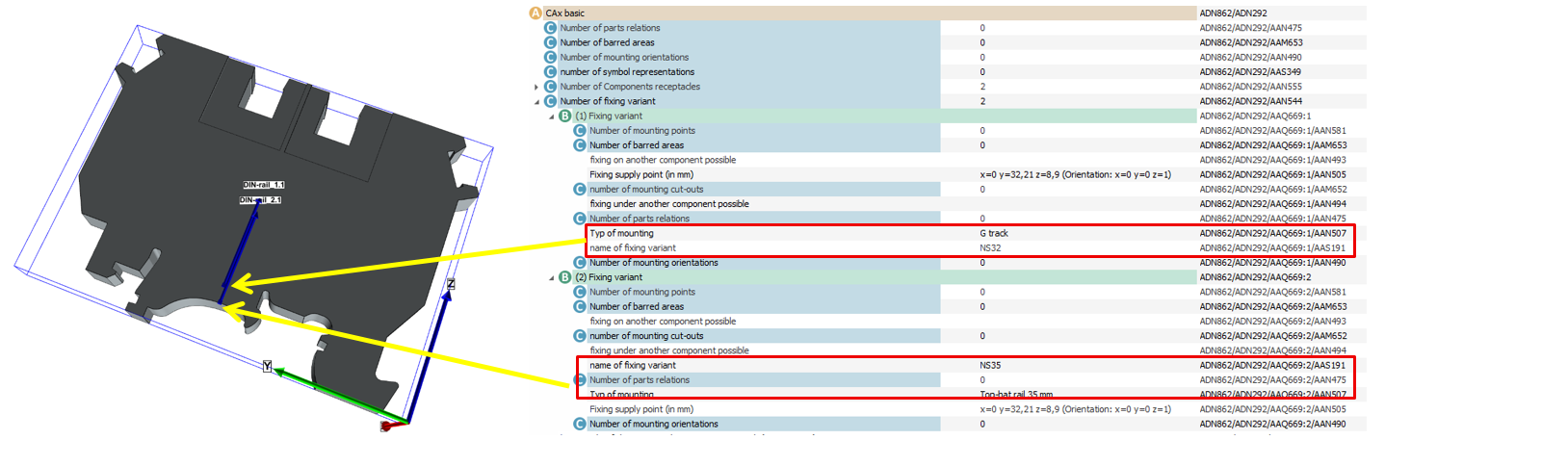

  • The mounting of the clamp on the mounting rail (center top edge of the rail) is described via the mounting reference point.
  • If several mounting options are available, the block is often listed as follows

Figure 79: Function and symbol application examples

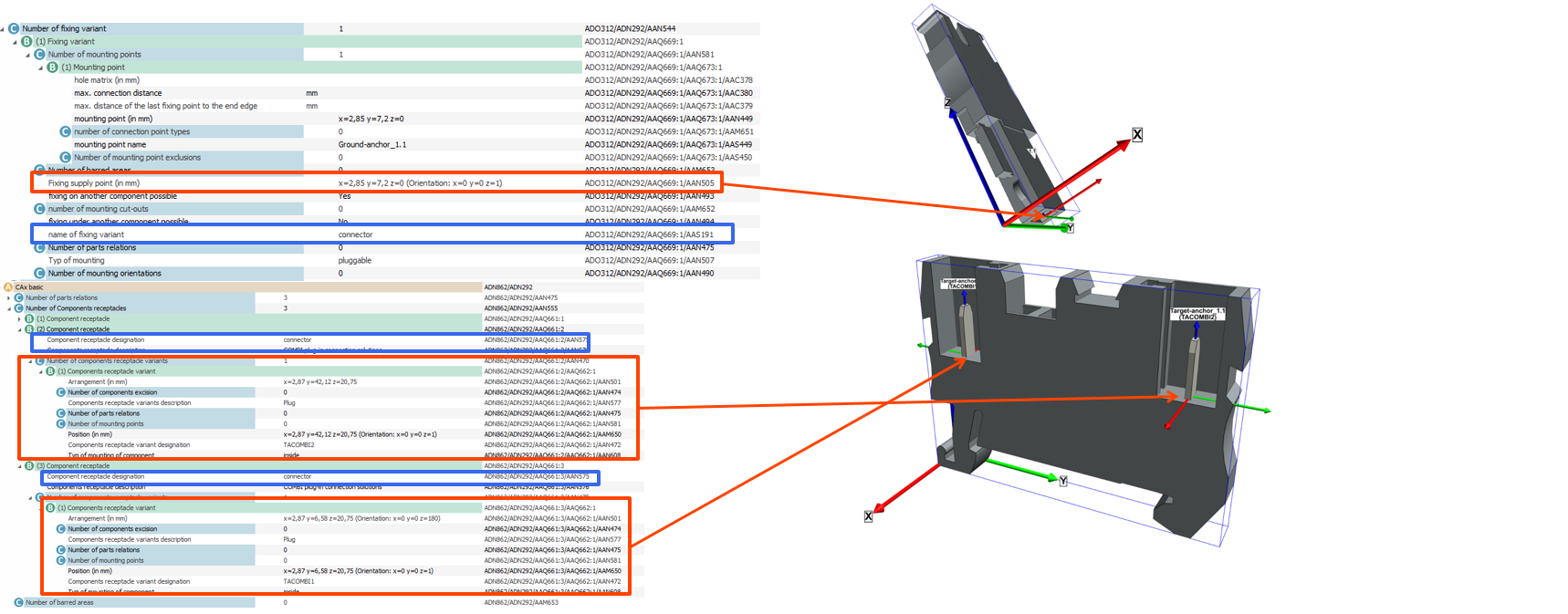

  • The connector must have the same value in the mounting variants as at the terminal in the component holder.

Figure 80: Pluggable terminals

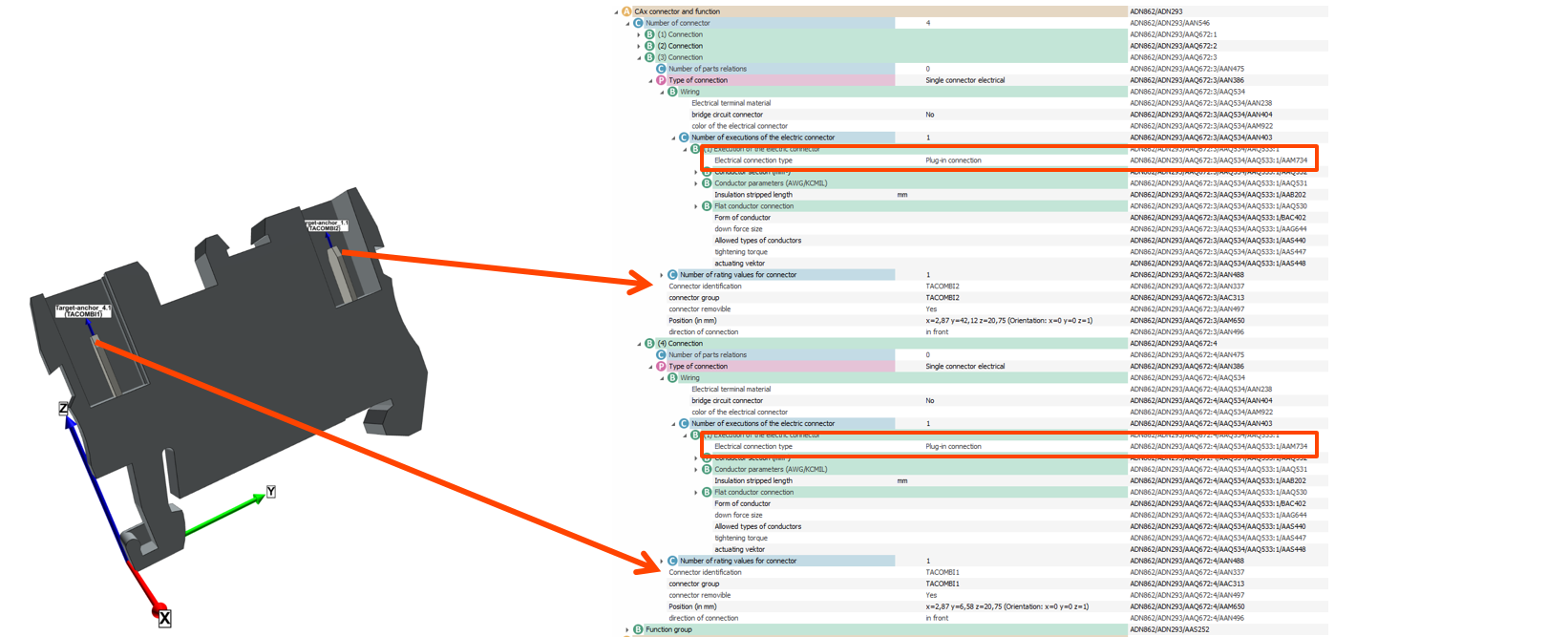

  • The plug-in connection at the terminal must be described as a separate electrical connection in the ECLASS model.

Figure 81: Pluggable terminals

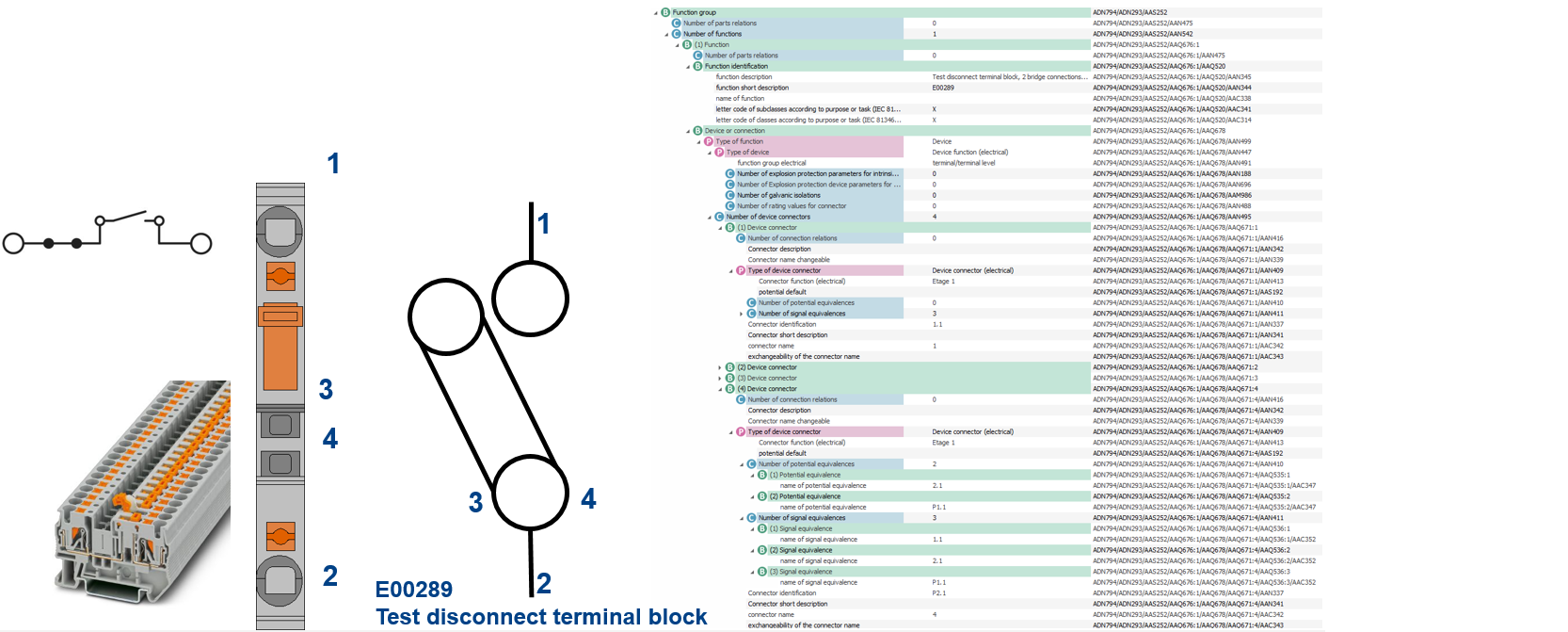

  • The potential equivalence indicates to which connections are directly connected
  • The signal equivalence indicates which connections are connected when the isolator is closed.

Figure 82: signal equivalence
